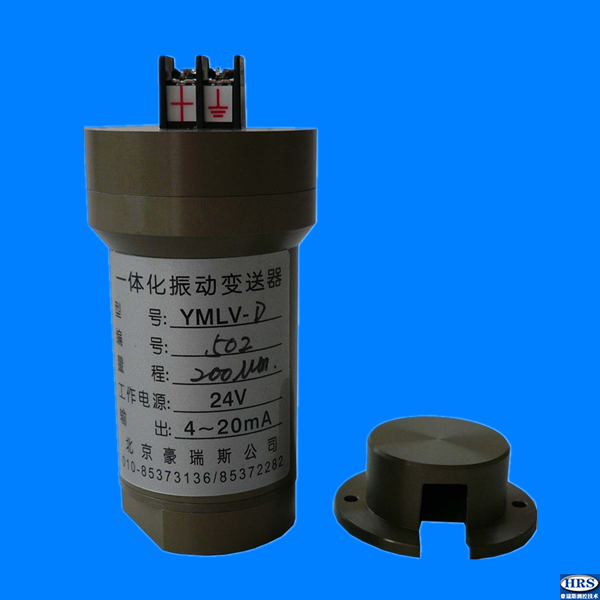

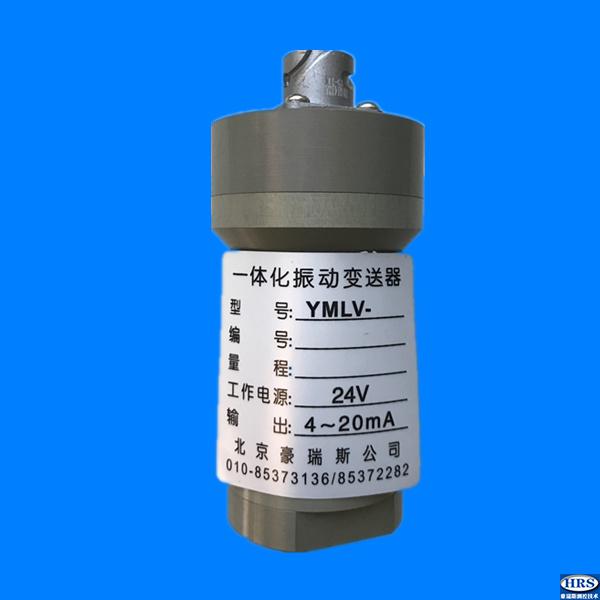

Integrated vibration transducer mainly by the vibration velocity sensor, function conversion circuit. Can be widely used: fans, compressors, pumps and other large rotating machine. Measure bearing, chassis and other vibration. Output current (or voltage) signal, easy to connect with the computer system (DCS, etc.). It is directly mounted on the outside of the machine so it is extremely easy to install, use and maintain.
▲ monitor the absolute vibration of rotating machinery, such as bearing bush, chassis, rack vibration, etc., and output the speed of vibration (intensity), the displacement value.
▲ Installation: M8 hole in the machine bearing cover (effective depth 10mm), M8 bolts directly.
▲ output accuracy: 3%
▲ load capacity: not more than 500Ω
▲ measurement parameters: vibration displacement, vibration velocity (intensity) value.
